Monitoring Agent Interactions with LangSmith

Introduction

Debugging and monitoring complex multi-agent systems presents unique challenges. When agents collaborate, execute tools, and make decisions autonomously, understanding the flow of information and pinpointing issues becomes critical for development and production monitoring.

AgentConnect integrates with LangSmith to provide comprehensive observability into your agent ecosystem. LangSmith is a powerful platform designed specifically for tracing, monitoring, and debugging LLM applications.

Key benefits of using LangSmith with AgentConnect include:

  • End-to-End Workflow Visualization: See the complete execution path of agent interactions, from initial user request through all intermediate steps to final response.

  • Tool Call Tracking: Monitor all tool executions including collaboration tools (like search_for_agents), payment tools (such as native_transfer), and any custom tools you’ve added.

  • Error Identification: Quickly identify where and why failures occur in complex agent workflows.

  • Resource Monitoring: Track token usage, latency, and other performance metrics to optimize your application.

Setup and Configuration

LangSmith integration is primarily enabled through environment variables. To enable LangSmith tracing for your AgentConnect application, add the following to your .env file:

# LangSmith Configuration
LANGSMITH_TRACING=true
LANGSMITH_API_KEY=your_langsmith_api_key
LANGSMITH_PROJECT=AgentConnect
LANGSMITH_ENDPOINT=https://api.smith.langchain.com

check out LangSmith’s documentation for more information on how to create an API key

Automatic Integration

Once you’ve set these environment variables, AgentConnect and LangChain will automatically capture traces of agent execution without requiring any additional code changes. AgentConnect’s internal components are designed to work seamlessly with this automatic tracing system.

Every agent interaction, LLM call, and tool execution will be logged to your LangSmith project, creating a comprehensive record of your application’s behavior.

What You Can See in LangSmith

Trace Visualization

LangSmith provides a visual representation of the entire interaction flow for each request or agent run, allowing you to see the big picture of how agents interact.

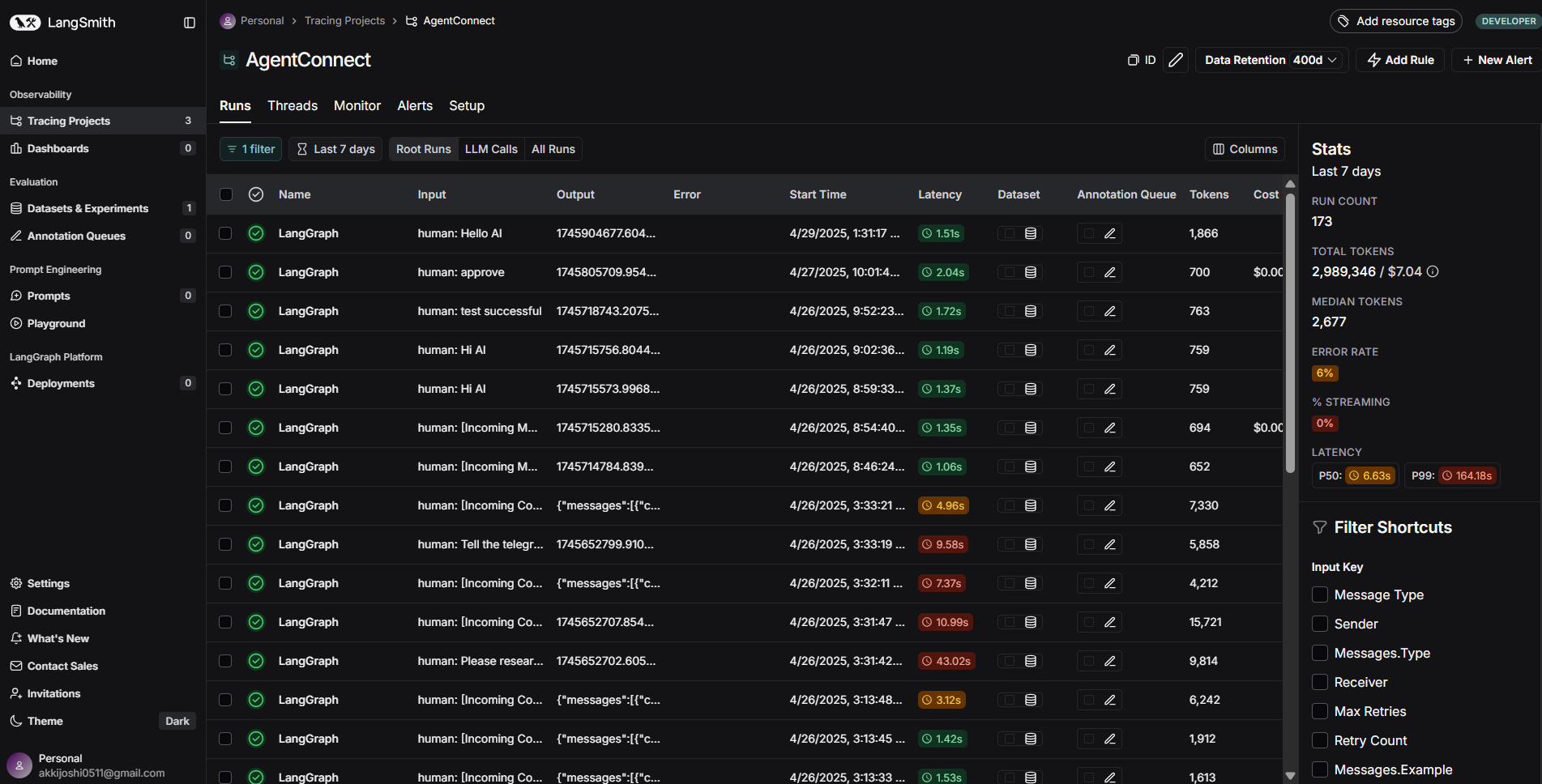

LangSmith project dashboard showing multiple AgentConnect traces

Figure 1: LangSmith project dashboard showing multiple AgentConnect traces.

Step-by-Step Breakdown

Each trace details the sequence of operations, including LLM calls, tool executions, and agent decision steps. This breakdown helps you understand exactly how your agent arrived at its responses or actions.

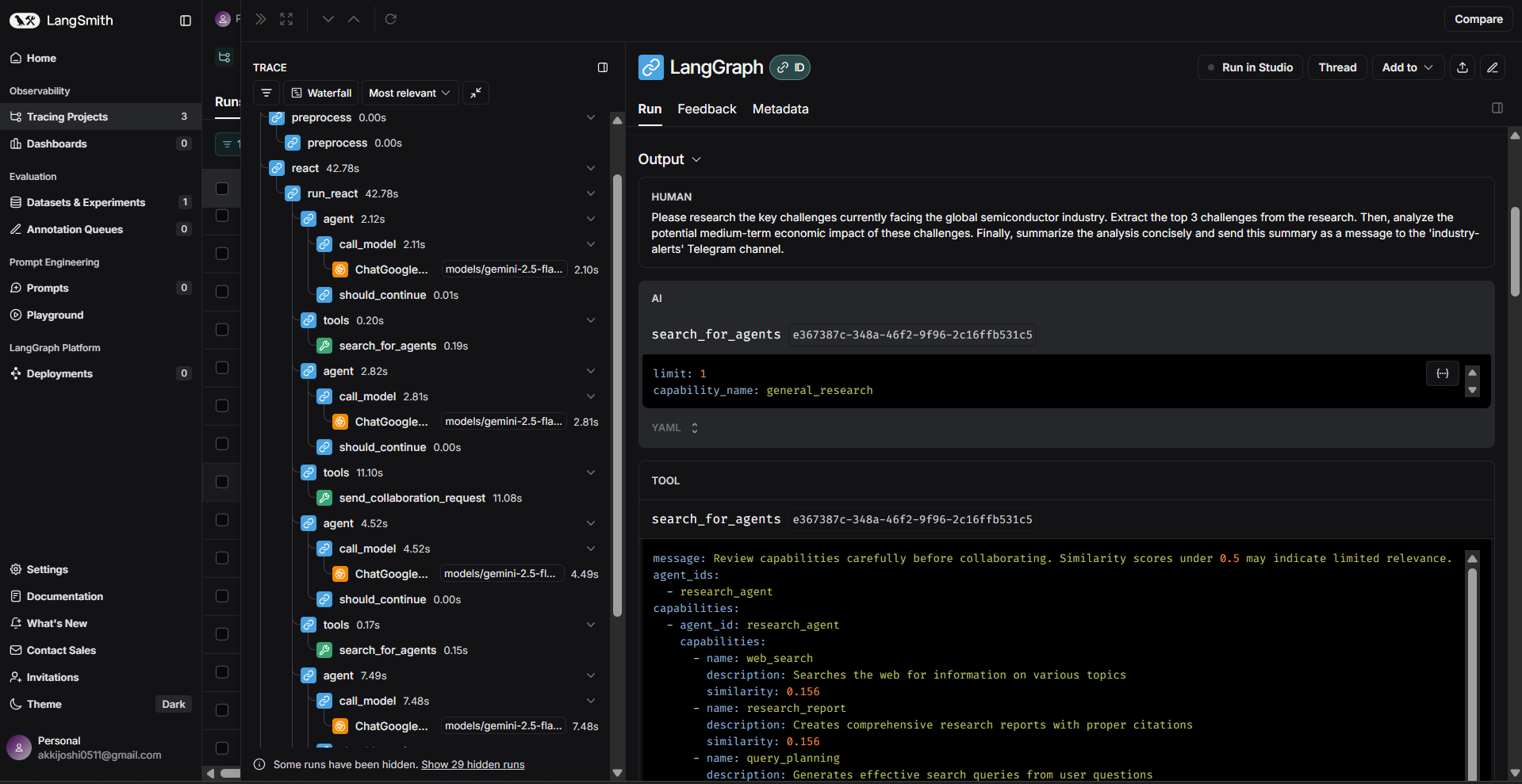

Detailed view of a single trace showing the sequence of LLM calls and tool executions

Figure 2: Detailed view of a single trace showing the sequence of LLM calls and tool executions.

Tool Usage Insights

All tool calls are logged with their specific inputs and outputs, including:

  • Built-in collaboration tools (search_for_agents, send_collaboration_request)

  • Payment tools (native_transfer, erc20_transfer)

  • Custom tools added via custom_tools

This provides visibility into exactly what data is flowing between components of your system.

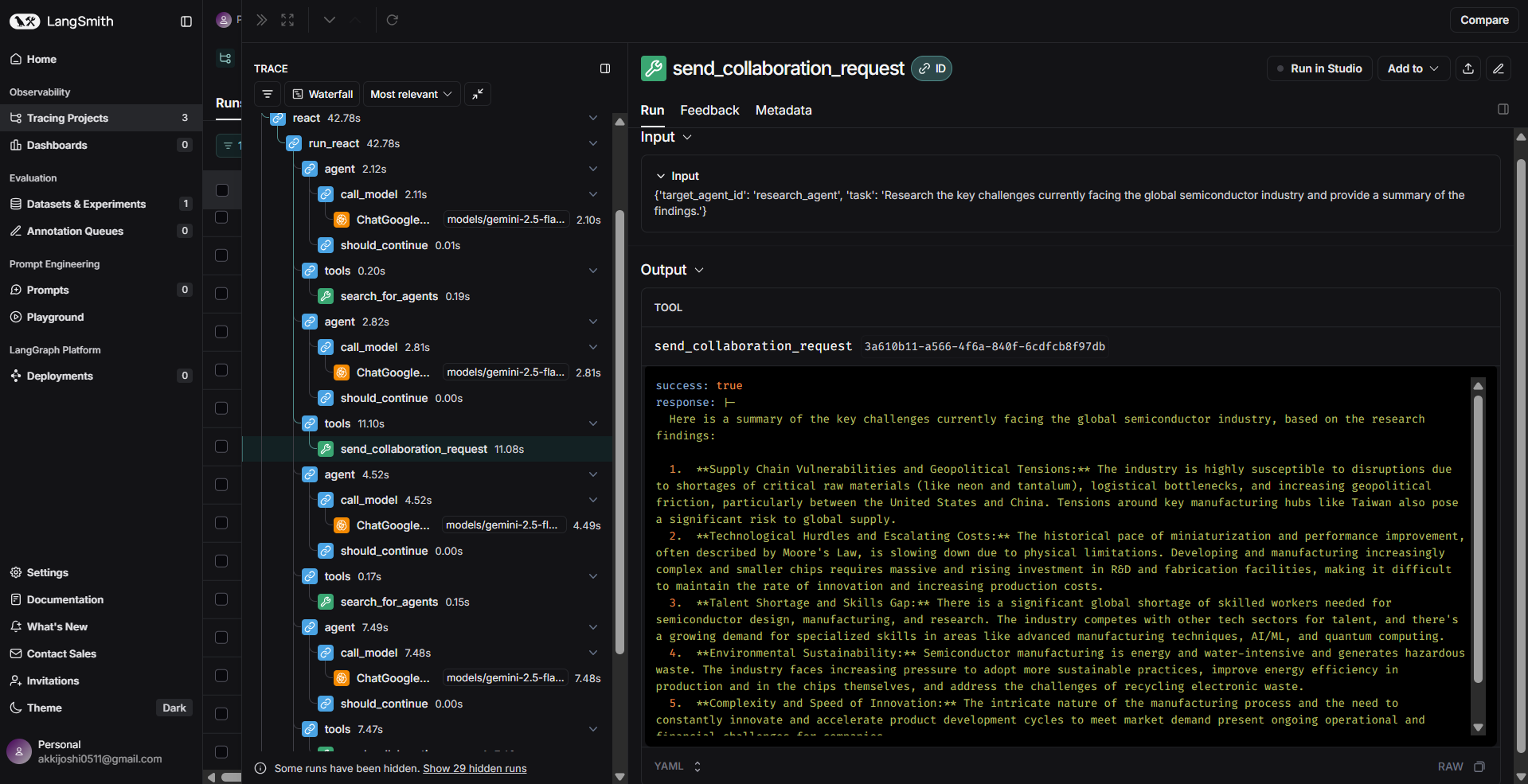

Detail of a tool call within a trace showing input arguments and the returned result

Figure 3: Detail of a tool call within a trace showing input arguments and the returned result.

Error Debugging

Errors within the workflow are clearly marked in the trace, showing the failing step and the error message. This makes it much easier to identify and fix issues in complex workflows.

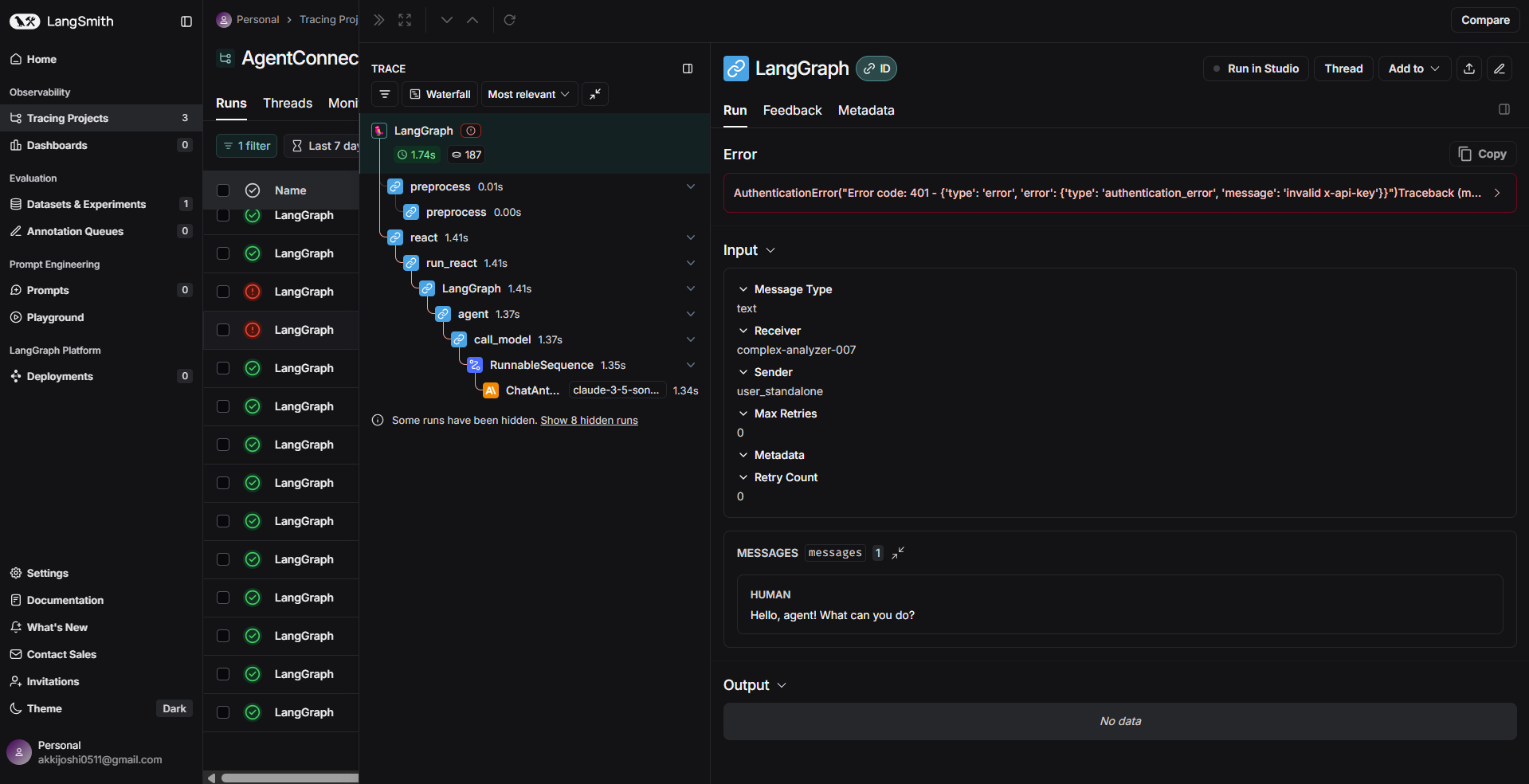

A LangSmith trace highlighting a failed step and the associated error message

Figure 4: A LangSmith trace highlighting a failed step and the associated error message.

Performance Monitoring

LangSmith automatically tracks token counts and latency for LLM calls and overall traces. This data helps you optimize your application’s performance and manage costs effectively.

Console-Based Monitoring

For real-time console monitoring during development, AgentConnect offers callback-based logging tools. See the Application Logging & Event Handling guide for details on using the ToolTracerCallbackHandler and other logging approaches.

Summary

LangSmith offers powerful, largely automatic observability for AgentConnect applications when configured correctly via environment variables. This integration enables easier debugging and monitoring of complex agent behaviors, helping you develop more reliable and efficient multi-agent systems.

By combining LangSmith’s comprehensive tracing with AgentConnect’s flexible architecture, you gain deep insights into your agents’ decision-making processes, tool usage, and collaboration patterns. This visibility is essential for both development and production monitoring of sophisticated agent-based applications.
